Selasa, 26 Agustus 2008

Aqua MODIS - SeaDAS

Pertanyaan ini saya peroleh dari seorang temen di Pontianak :)


1. apakah citra modis dapat digunakan untuk pencitraan SPL dan klorofil ?
jawab :

citra aqua modis dapat digunakan untuk SPL dan klorofil.
apabila menghendaki level 2 aqua modis SPL dan Klorofil tanpa melalui pengolahan atau dengan kata lain langsung download data level 2 nya dapat diperoleh di
http://oceancolor.gsfc.nasa.gov/cgi/browse.pl?sen=am

2. apakah citra modis dapat di download secara free n bagaimana caranya ?
jawab :

untuk citra level 2 oceancolor (SPL, Klorofil) bisa di download di http://oceancolor.gsfc.nasa.gov/cgi/browse.pl?sen=am

untuk level 1 bisa di download di http://ladsweb.nascom.nasa.gov/

3. bagaimanakah cara pengolahan citra modis untuk mengetahui SPL dan klorofil ?

jawab :

pengolahan citra modis untuk ekstraksi informasi SPL dan klorofil bisa menggunakan software SEaDAs yang free..

software bisa di unduh di http://oceancolor.gsfc.nasa.gov/seadas/


Maaf sebelumnya Pak..saya membalasnya via blog..soalnya ga da emailny :)


semoga bisa membantu :)

salam kenal,

Aji PP

Kamis, 21 Agustus 2008

Argo Float Bibliography

Thanks alot to Professor/Researcher Dean Roemmich for add my research in http://www.argo.ucsd.edu/FrBibliography.html



i'm so happy be a part of Argo Float....

What is Argo?

Argo is a global array of 3,000 free-drifting profiling floats that measures the temperature and salinity of the upper 2000 m of the ocean. This allows, for the first time, continuous monitoring of the temperature, salinity, and velocity of the upper ocean, with all data being relayed and made publicly available within hours after collection.

on 20 August 2008, 3175 floats of Argo have been deployed and floating in the ocean..


Why do we need Argo?
We are increasingly concerned about global change and its regional impacts. Sea level is rising at an accelerating rate of 3 mm/year, Arctic sea ice cover is shrinking and high latitude areas are warming rapidly. Extreme weather events cause loss of life and enormous burdens on the insurance industry. Globally, 8 of the 10 warmest years since 1860, when instrumental records began, were in the past decade.

These effects are caused by a mixture of long-term climate change and natural variability. Their impacts are in some cases beneficial (lengthened growing seasons, opening of Arctic shipping routes) and in others adverse (increased coastal flooding, severe droughts, more extreme and frequent heat waves and weather events such as severe tropical cyclones).

Understanding (and eventually predicting) changes in both the atmosphere and ocean are needed to guide international actions, to optimize governments’ policies and to shape industrial strategies. To make those predictions we need improved models of climate and of the entire earth system (including socio-economic factors).

Lack of sustained observations of the atmosphere, oceans and land have hindered the development and validation of climate models. An example comes from a recent analysis which concluded that the currents transporting heat northwards in the Atlantic and influencing western European climate had weakened by 30% in the past decade. This result had to be based on just five research measurements spread over 40 years. Was this change part of a trend that might lead to a major change in the Atlantic circulation, or due to natural variability that will reverse in the future, or is it an artifact of the limited observations?

In 1999, to combat this lack of data, an innovative step was taken by scientists to greatly improve the collection of observations inside the ocean through increased sampling of old and new quantities and increased coverage in terms of time and area.

Where is Argo now?

Argo deployments began in 2000 and by November 2007 the array is 100% complete. Today's tally of floats is shown in the figure above. While the Argo array is currently complete at 3000 floats, to be maintained at that level, national commitments need to provide about 800 floats per year (which has occurred for the past three years).

Besides float deployment, Argo has worked hard to develop two separate data streams: real time and delayed mode. A real time data delivery and quality control system has been established that delivers 90% of profiles to users via two global data centers within 24 hours. A delayed mode quality control system (DMQC) has been established and 50% of all eligible profiles have had DMQC applied.

Float reliability has improved each year and the float lifetime has been extended. Argo has developed a large user community in universities, government labs and meteorological/climate analysis/forecasting centers. The need for global Argo observations will continue indefinitely into the future, though the technologies and design of the array will evolve as better instruments are built, models are improved, and more is learned about ocean variability.

Who Collaborates with Argo?

Argo is a major contributor to the WCRP's Climate Variability and Predictability Experiment (CLIVAR) project and to the Global Ocean Data Assimilation Experiment (GODAE). The Argo array is part of the Global Climate Observing System/Global Ocean Observing System GCOS/ GOOS).

source information : http://www.argo.ucsd.edu/index.html
http://www.argo.ucsd.edu/FrBibliography.html

Rabu, 20 Agustus 2008

arcgis image processing (2)


Di dalam modul ringkas, PENGOLAHAN CITRA DIGITAL MENGGUNAKAN SOFTWARE ARCGIS 9.2 berisi materi display citra di arcmap dan arccatalog, membuat citra komposit, display nilai piksel citra, dispay nilai rentan dari band/saluran citra, georeference citra (koreksi geometrik), klasifikasi multispektal baik supervised maupun unsupervised dengan klasifikasi maximum likelihood.



silahkan bergabung ke dalam mailinglist/google group geovisi untuk bersama-sama sharing tentang sig (sistem informasi geografis)dan remote sensing (penginderaan jauh) di
http://groups.google.com/group/komunitas-gis

untuk download GIS Textbooks "PENGOLAHAN CITRA DIGITAL MENGGUNAKAN SOFTWARE ARCGIS 9.2"
http://groups.google.com/group/komunitas-gis/files/
ada file pdf : PCD_ARCGIS_GEOVISI.pdf

Selasa, 19 Agustus 2008

ARCGIS PENGOLAHAN CITRA SATELIT DIGITAL

" ArcGIS merupakan software GIS yang “LUAR BIASA”. Alhamdulillah...telah tertuangkan lagi Pengolahan Citra Digital Menggunakan Software ArcGIS 9.2. Sedikit tulisan ini merupakan cuplikan dan editan dari tulisan sebelumnya yang dibuat dalam rangka Pelatihan SIG Analis Menggunakan ArcGIS 9.2 pada tahun 2007 saat penulis di Laboratorium SIG Fakultas Geografi UGM.

Pengolahan citra digital pada umumnya menggunakan software-software pengolahan citra, seperti ENVI, ErMapper, Erdas, Ilwis, dll.Tetapi seperti halnya ArcView dengan ekstensi Image Analyst, software ArcGIS ini juga mempunyai kemampuan dalam pengolahan data raster dengan fasilitas ArcToolbox-nya yang memiliki bermacam-macam Tools dan ekstensi yang disediakan ArcGIS.

Tulisan ini ...... "

di atas merupakan cuplikan dari kata pengantar pada GIS Textbooks "PENGOLAHAN CITRA DIGITAL MENGGUNAKAN SOFTWARE ARCGIS 9.2" yang diupload di milist komunitas gis.

silahkan bergabung ke dalam mailinglist/google group geovisi untuk bersama-sama sharing tentang sig (sistem informasi geografis)dan remote sensing (penginderaan jauh) di
http://groups.google.com/group/komunitas-gis

untuk download GIS Textbooks "PENGOLAHAN CITRA DIGITAL MENGGUNAKAN SOFTWARE ARCGIS 9.2"
http://groups.google.com/group/komunitas-gis/files/
ada file pdf : PCD_ARCGIS_GEOVISI.pdf


nice to share :)
keep study everyday :)

salam hangat,

Aji PP
"gis'er cakep 'n raster maniax"

gis training agustus 2008

Coming Soon...
GIS Training in August 2008 by P.T. Geovisi Mitratama


Kembali P.T. Geovisi Mitratama menawarkan Pelatihan Sistem Informasi Geografis (SIG)

Pelatihan GIS Tingkat Dasar (Operator) di Bulan Agustus 2008.

Pelatihan GIS tersebut dijadwalkan pada minggu ke IV bulan Agustus,
tanggal 26 - 30 Agustus 2008.

Pelatihan dilaksanakan selama 5 hari, 4 hari kelas dan 1 hari lapangan.

Dengan rincian Jadual dan Materi Pelatihan SIG :
Hari I, Pengenalan SIG dan aplikasinya
Hari II, Dasar-dasar Input Data, Teknik input Data
Hari III, Dasar-dasar Manajemen Data SIG, Teknik Manajemen Basis Data SIG
Hari IV, Manajemen Keluaran/Output
Hari V, Kelas Lapangan

Namun jika ada permintaan khusus kami dapat menyelenggarakan dengan perubahan jadual. Untuk persyaratannya, minimal peserta adalah 5 orang.

Demikian penawaran kami sampaikan, dan kami mengharapkan dan menunggu kehadiran Bapak/Ibu/Saudara, terima Kasih.


Hormat Kami,
Divisi Kerjasama dan Pemasaran

A. Anam
Office : (0274) 798306 (telp/fax)
web : http://geovisi.com
e-mail : info@geovisi.com

silahkan bergabung ke dalam mailinglist/google group geovisi untuk bersama-sama menyamakan persepsi dan konsep SIG (sistem informasi geografis) di
http://groups.google.com/group/komunitas-gis

Jumat, 08 Agustus 2008

GPS, Input GIS, Edit Tabular Data, Entri Data

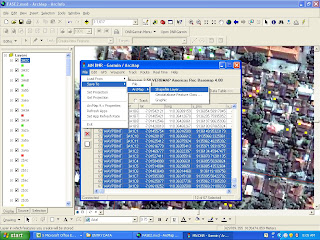

Download data from GPS using ArcGIS with DNRGarmin...



Entri Data dengan Exel..


itulah yang kulakukan saat ini :)

Aji Cakep :)

Rabu, 06 Agustus 2008

Convert (Edit) Annotation Coverage (ArcInfo) dalam ArcGIS

Untuk mengedit anotasi coverage (dari arcinfo), buka ArcMap, tambahkan data Anotasi ArcInfo.



Kemudian pada menu Tools, pilih Customize. pada tab Toolbars, centang tools Labeling.
Lalu pilih tab Commands.



pada Commands kategori , pilih Label, kemudian di Commands pilih Convert Coverage Anotation...



drag ke dalam tools Labeling.
Selanjutnya, klik Convert Coverage Anotation tersebut..(akan aktif jika kita sudah menambahkan data coverage anotasi kita)

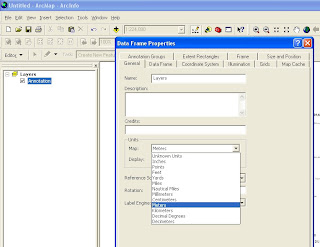

* Jangan lupa atur skala data frame kita.



Silahkan convert coverage anotasi kita, bisa ke dalam geodatabase atau sebagai anotasi dalam peta (graphic)..


Langkah selanjutnya tinggal kita edit :)
Semoga bisa membantu..

Salam dan Sukses,

Aji PP
"gis'er cakep"
